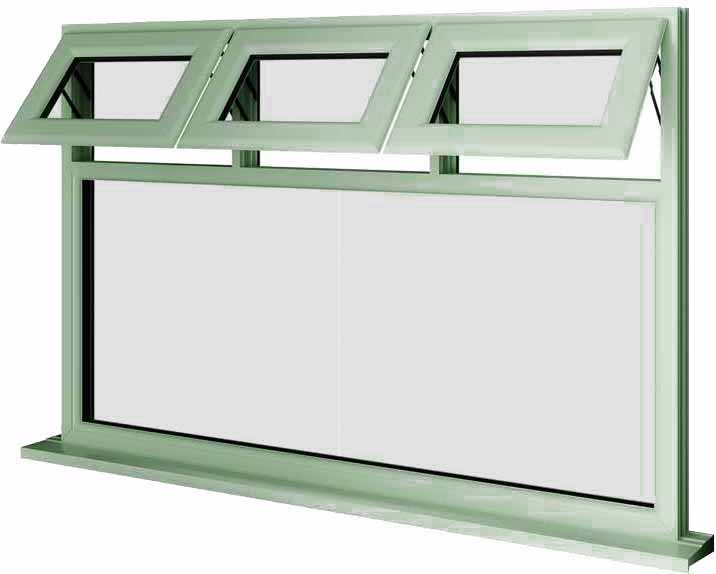

Chartwell Green UPVC Window Style 23

a rated windows
quality upvc windows
fast delivery
cheap upvc windows
house of windows service
Window Details

Dimensions:

All window frames are made to measure.

  • Sizes stated should be the overall frame size including any cill and frame extensions (if required).
  • All dimensions to be supplied in Metric.
  • All frame styles are viewed from outside.
  • We do not make any fitting allowances on the sizes you provide. The size you state will be the size we manufacture.
Frame Width (mm)

Frame Height (mm)

Sizes stated should be the overall frame size including any cill and frame extensions (if required).

External Cill:

All external cills are 30mm high and will need to be included in the overall height.

85mm stub cill
The stub cill protrudes just 15mm from the external window frame.

85mm stub cill

150mm standard cill
The most common and standard cill size covers most applications. Protrudes 80mm from the external window frame.

150mm cill

180mm cill
If your windows are set further back into the brickwork then you may require the oversized cill which protrudes 110mm from the window frame.

180mm cill

A frame extender allows you to increase the thickness of the window frame. Useful for properties with deep plaster, render or tiles. 10mm, 20mm and 50mm extensions are available.

Remember, if you require any extensions, these need to be included in the overall dimensions.

Frame Extensions (add on's):

Left Top Right
10mm
20mm
50mm
Frame Colours

Please choose a colour:

Windows are available in white, coloured woodgrain effect upvc both sides or coloured outside and white inside.

White
White
Oak
Oak
Oak/White
Oak/White
Rosewood
Rosewood
Rosewood/White
Rosewood/White
Grey
Grey
Grey/White
Grey/White
Chartwell/White
Chartwell/White
Cream
Cream
Cream/White
Cream/White
Black
Black
Black/White
Black/White
Glazing
Please choose a glass pattern:

Obscure glass patterns available:

Chantilly
Chantilly
Chantilly - Level 2
Flemish
Flemish
Flemish - Level 2
Minster
Minster
Minster - Level 2
Sycamore
Sycamore
Sycamore - Level 2
Autumn
Autumn
Autumn - Level 3
Digital
Digital
Digital - Level 3
Taffeta
Taffeta
Taffeta - Level 3
Arctic
Arctic
Arctic - Level 4
Charcoal
Charcoal
Charcoal Sticks - Level 4
Contora
Contora
Contora - Level 4
Florielle
Florielle
Florielle - Level 4
Mayflower
Mayflower
Mayflower - Level 4
Stippolyte
Stippolyte
Stippolyte - Level 4
Oak
Oak
Oak - Level 4
Cotswold
Cotswold
Cotswold - Level 5
Everglade
Everglade
Everglade - Level 5
Pelerine
Pelerine
Pelerine - Level 5
Satin
Satin
Satin - Level 5

Additional Glass Options:

Toughened safety glass should be fitted in all windows or glazed areas that are lower than 800mm from the floor level.

We offer an array of decorative Georgian Bar designs. The internal bars are fitted within the sealed unit and 18mm thick as standard, available in our extensive range of colours to match the window frame profile.

We offer 9mm decorative square lead on the external pane of glass.

We offer 9mm decorative diamond lead on the external pane of glass.

Handle Colour

Please choose a handle colour:

Locking window handles are available in white, gold or chrome and supplied with a key.

White
White
Gold
Gold
Chrome
Chrome
Additional Options

As standard, all windows are fitted with stainless steel friction stays allowing the window to stay open in the required position.

  • Fire escape hinges or egress hinges for emergency exit requirements allow the window to open 90 degrees. Available on side hung windows only.
  • Restricted window hinges restrict the window opening to a maximum of 100mm to provide child safety. The windows can be opened fully by the press of a button. Available on both side and top hung windows.
  • Easy clean friction stays combine emergency exit requirements with an easy clean feature to access the outside of the window easier. Available for side hung windows only.

As standard, windows are fitted with dual action espag roller cams providing a high security locking system.

Shootbolt Upgrade
The optional shootbolt locking system provides exceptional security using a combination of steel roller cams and shootbolts and is guaranteed against mechanical failure for 10 years.

Trickle vents allow you to control ventilation and air circulation, helping to reduce condensation and mould. They provide you with a small amount of fresh air into the building without letting a lot of heat escape.

If the current windows have trickle vents fitted, then the new replacement windows must also be fitted with trickle vents.

All new build properties and extensions are required to have adequate background ventilation whether this is by window trickle vents, purge ventilation or extraction.

The installation pack includes a selection of universal frame and glazing packers, large 120mm self tapping frame screws (no rawl plugs required) and self tapping cill screws. Fixing screws for extension pieces will also be supplied if required.

fixing kit
Total Cost
£304.00 inc VAT
You can also order by phone - Call 01530 515161
